Example 90x90x90 Cube Case

The PIXIS Project aims to provide Makers with a versatile platform for building Raspberry Pi & similar SBC based Projects that require any of the following:

1. A professional robust metal case to house your Project
2. The ability to house up to three HATs to expand your Project build.
3. Carrier boards to hold Pi Zero, 3A+, Pi 4 and Pi 5 SBCs
4. PCIe M.2 socket for NVMe solid state drives (Pi 5 Carrier only)
5. All cables exit from the back of the Case.
6. Grove and QWIIC expansion capability for additional functionality.

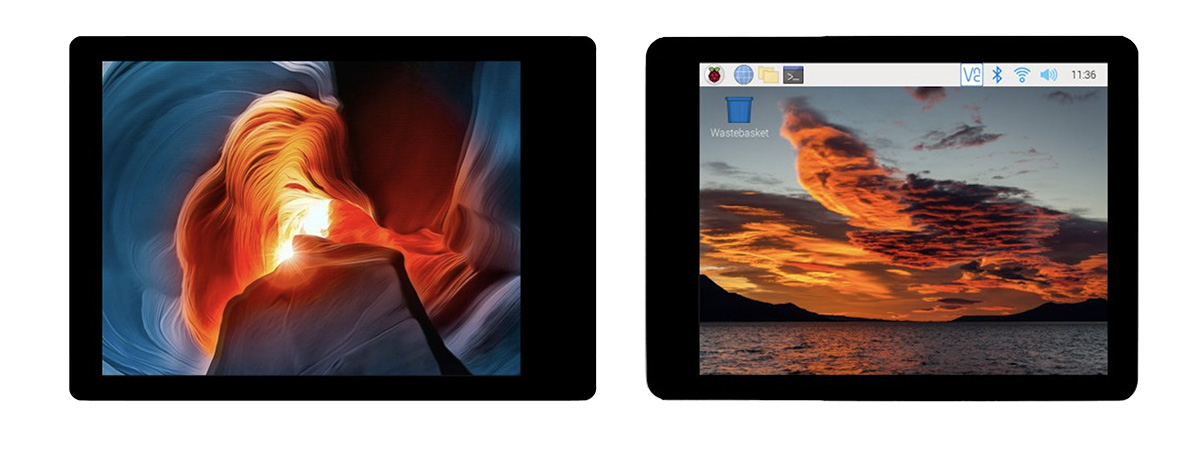

7. Optional 2.8″ DSI or SPI IPS LCDs with resolutions of 640×480 or 320×240.
8. Front and Back Panel CAD and CAM files for CNC machining, Laser cutting or 3D Printing by you, or stock from our STORE.

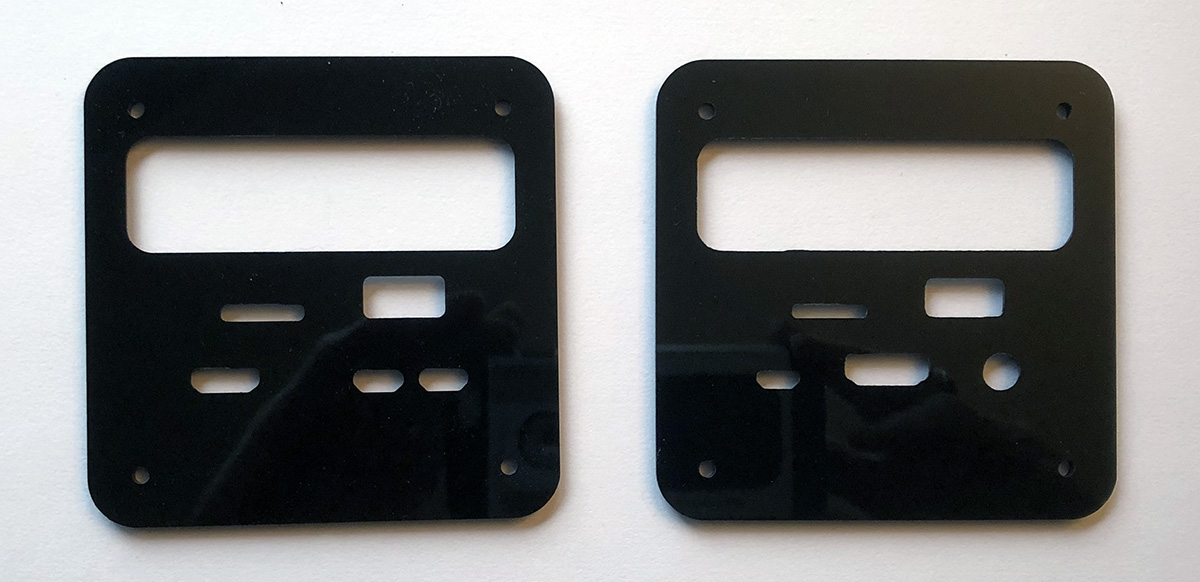

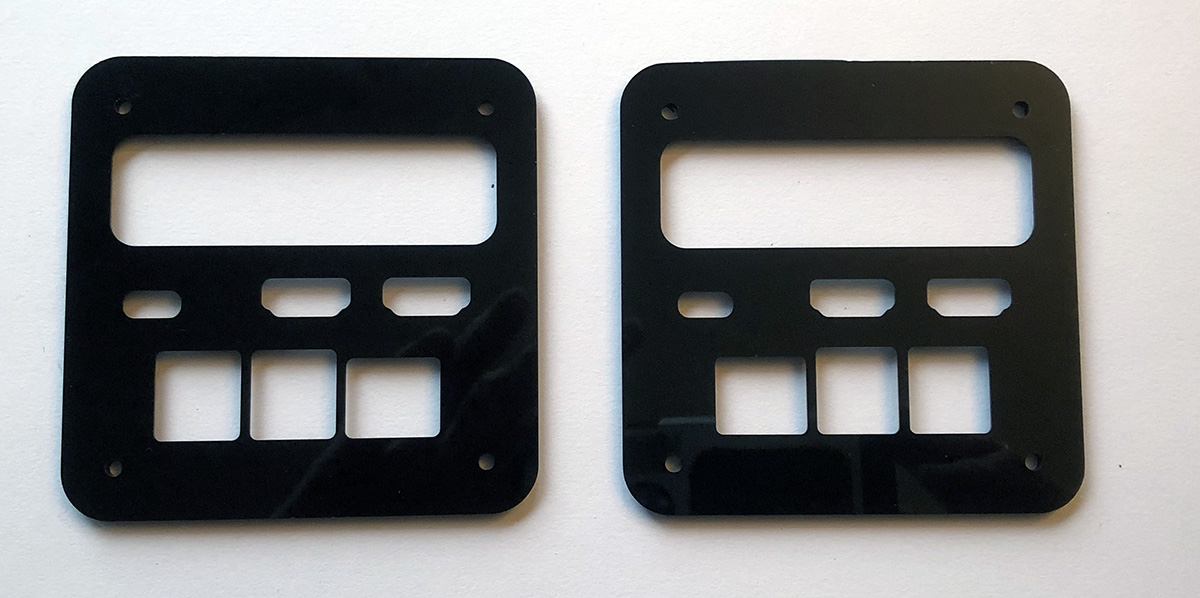

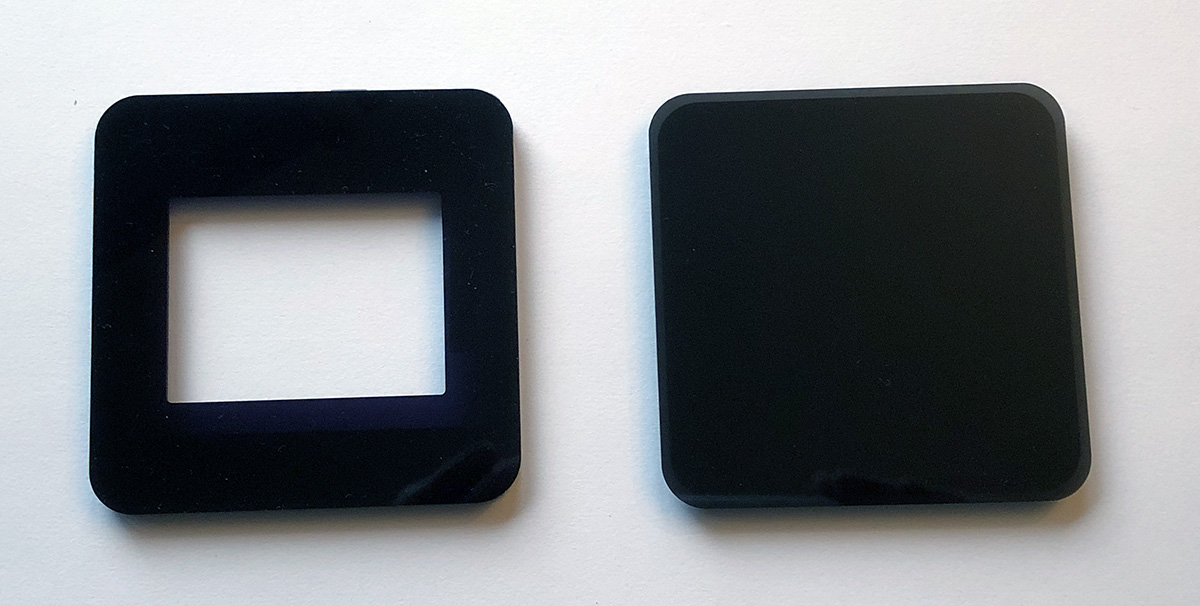

The front and back panels are in high gloss black acrylic and are available blank with no pre-cut holes for you to post machine to suit your Project or pre-machined for the different PIXIS Carrier Boards and Pi connector configurations. See here for list of panel parts.

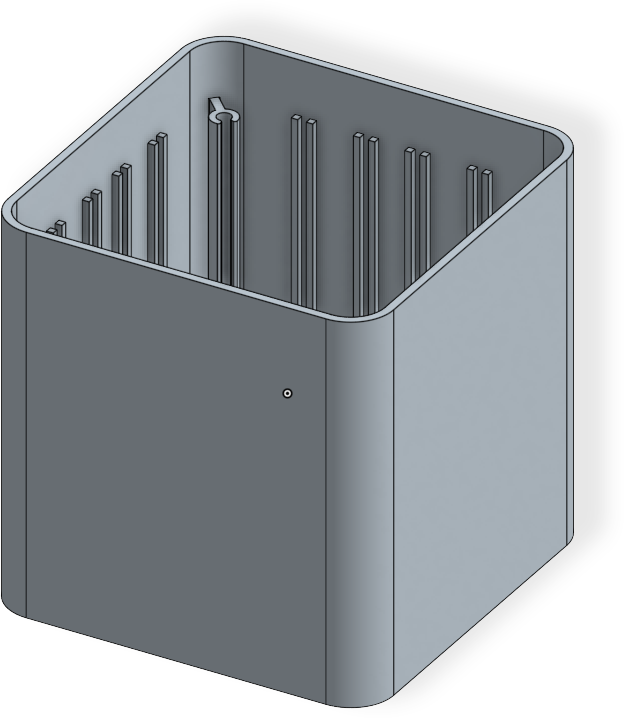

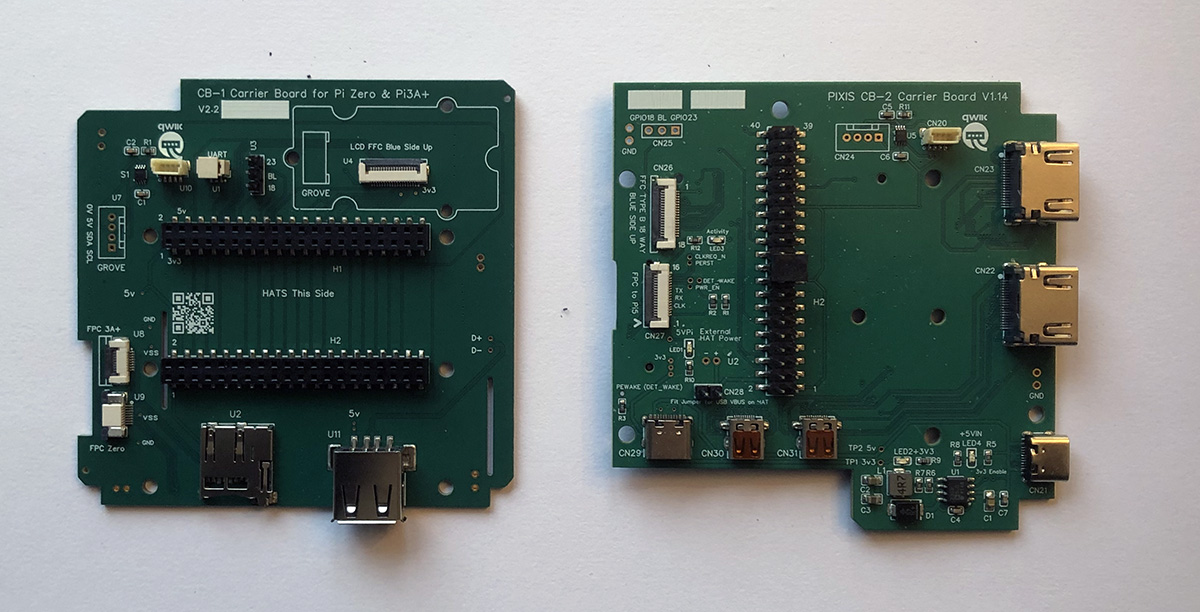

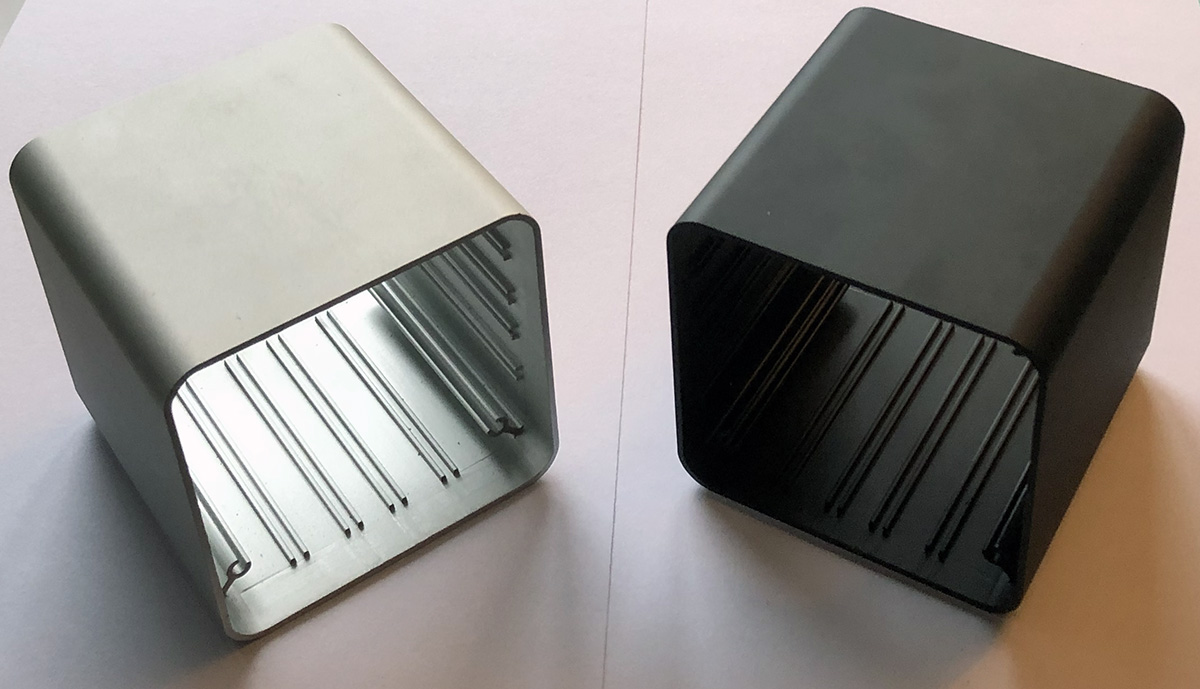

The CB90 Case is an extruded aluminium enclosure measuring 90x90x90mm. Anodised in silver or black and designed to house Raspberry Pi Single Board Computers or the numerous Pi clones that are available today Pi’s are mounted on Pixis Carrier Boards and enable expansion of up to 3 HATs. Two carrier boards for the Case are available. CB-1 for Pi Zero or Pi3A+ and CB-2 for Pi4 or Pi5. To finish a case there are several different front and back panels for front panel Displays and back panel cable entry and exit. The Carrier Boards and Panels have been designed so that all cables enter and exit from the rear panel.

The PIXIS Project is Open Source and all parts are available as CAD and CAM files for makers to use as is, or to modify and use as they wish. Most of the Pixis case parts are available ready made on the PIXIS STORE. The CAD and CAM files for these parts can be downloaded from the PIXIS OnShape and Github repositories.
