Description
Front Panel for 2.8” LCDs. Works with Waveshare 2.8inch SPi and DSI LCDs. Requires LCD Carrier Board CB-3 which is not supplied – order separately.
The Panel is injection moulded gloss black ABS and overall 6.6mm thick but the front face is only 1.6mm thick and has been laser cut with an opening for the Waveshare 2.8inch LCDs. The Panel can be used in Portrait or Landscape mode.
The panel has 4 x M3 FP Inserts (SKU FPM3) pre fitted as these are used to fix the front panel to the back panel using the 95mm long bolts supplied in the SSK1 and SSK 2 kits.
CAD/CAM files

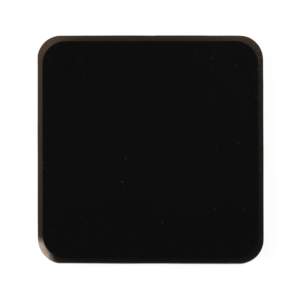

Use step file for cnc machining or 3D printing a new panel. Use dxf file for laser cutting a blank panel
fp28.step
fp28.dxf
